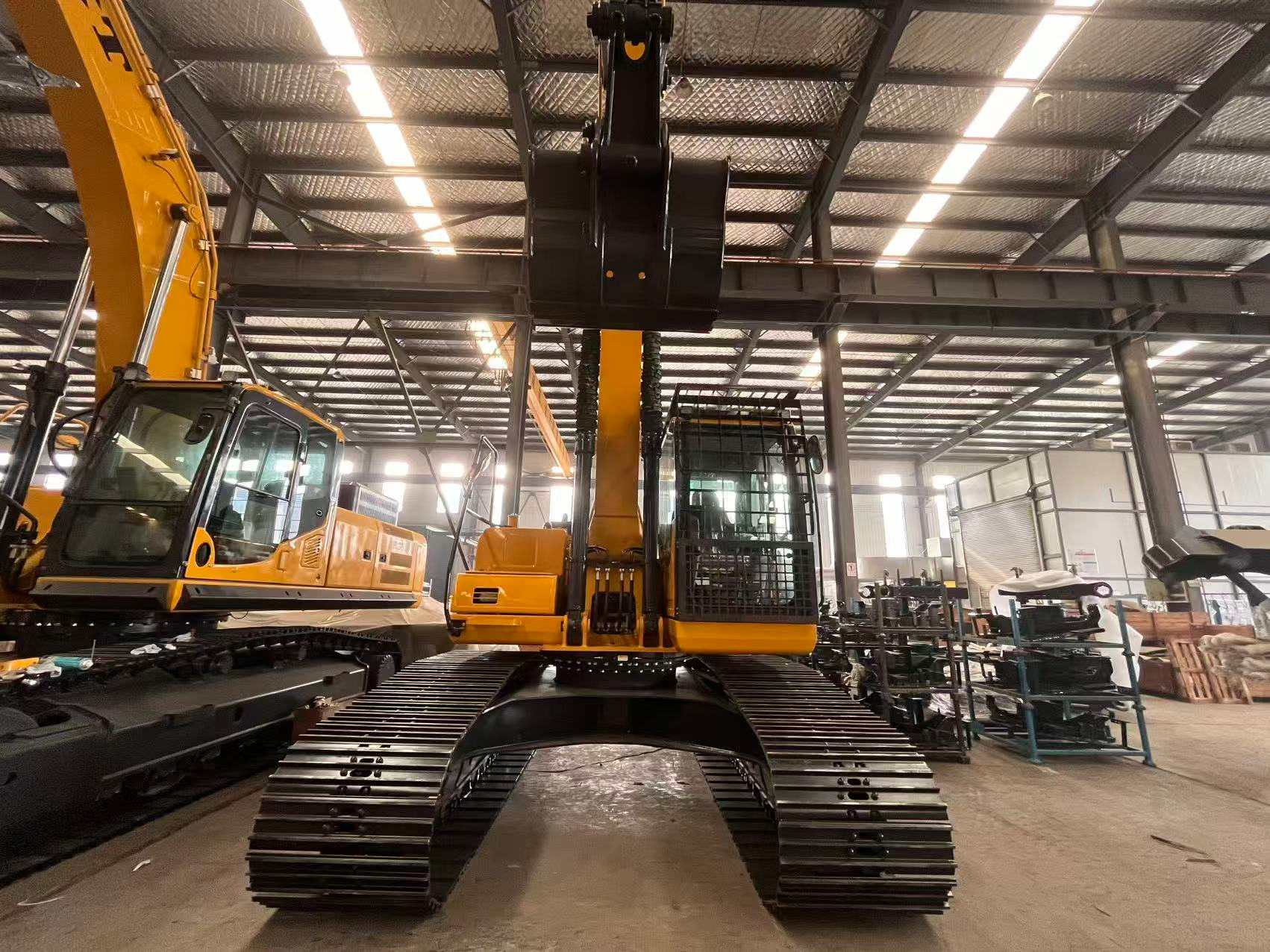

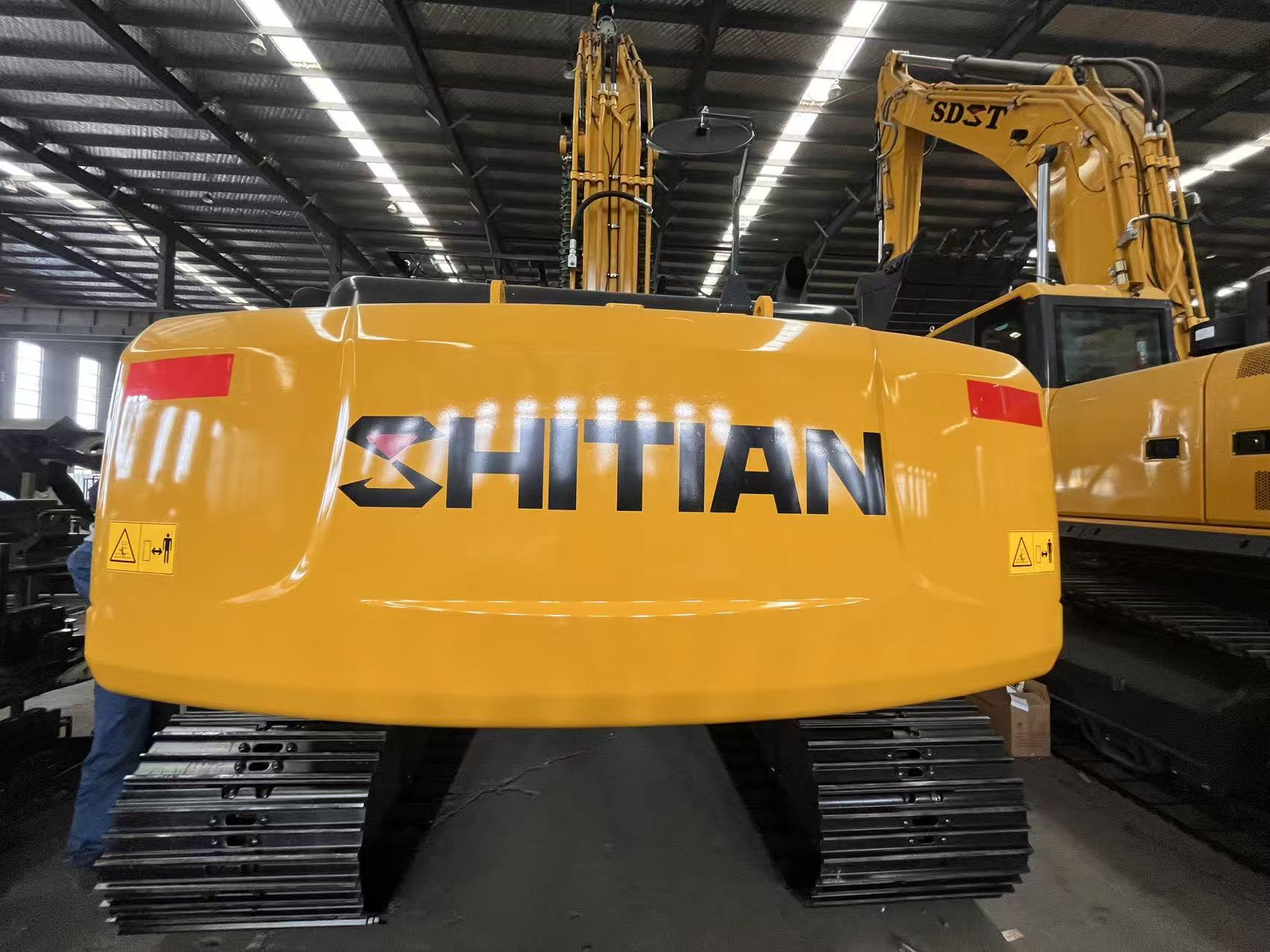

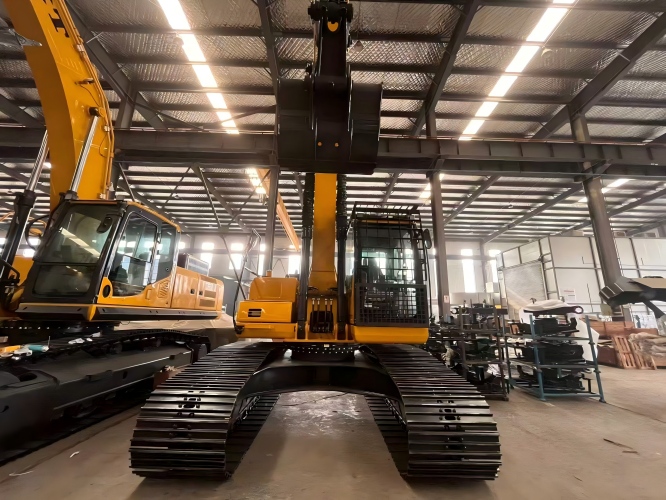

The SH240-8 is a robust 24‑ton class hydraulic crawler excavator engineered for high productivity, reliability, and low operating cost. Built with a Cummins 6BTAA5.9 powerplant, Kawasaki hydraulic components, and heavy‑duty structures, it delivers stable performance in general construction, road building, municipal engineering, and earthmoving projects.

Designed with operator comfort, fuel efficiency, and easy maintenance in mind, the SH240-8 matches global quality standards while offering exceptional value for medium‑duty excavation work.

• Strong & Efficient PowerCummins 6BTAA5.9 engine provides 153 kW @ 2200 rpm and high torque at low speed, ensuring strong digging force and fuel economy.

• Precision Hydraulic SystemKawasaki variable piston pumps ×2 (total 2×224 L/min) + Parker main valve deliver smooth, responsive control and high efficiency.

• Heavy‑Duty UndercarriageStable chassis with 2×9 track rollers per side, optimized for durability and balance in tough working conditions.

• High ProductivityLarge digging force, long digging reach, and high breakout force improve cycle times and daily output.

• Comfortable & Safe CabSpacious operator station, low vibration, clear visibility, and ergonomic controls reduce fatigue during long shifts.

• Powered by Cummins 6BTAA5.9 engine for strong torque and low fuel consumption

• Equipped with Kawasaki pump & Parker main valve for smooth and precise hydraulic control

• 23 ton operating weight and 0.9–1.3 m³ bucket for high productivity

• Reinforced undercarriage and stable structure for long service life

• Comfortable cab, easy maintenance and low operating costGeneral

• Model: SH240-8

• Machine Type: Hydraulic Crawler Excavator

• Operating Weight: 23,500 kg

• Bucket Capacity: 0.9–1.3 m³

• Gradeability: 70% (35°)

Engine

Model: Cummins 6BTAA5.9

Rated Power: 153 kW @ 2200 rpm

Max. Torque: 870 N·m @ 1400 rpm

Hydraulic System

• Main Pump: Kawasaki variable displacement piston pumps

• Main Valve: Parker

• Max. Working Flow: 2×224 L/min

• Working Pressure: 34.3 MPa

• Control Circuit Pressure: 3.9 MPa

Working Performance

• Max. Digging Height: 10,095 mm

• Max. Dumping Height: 7,190 mm

• Max. Digging Depth: 6,490 mm

• Max. Vertical Digging Depth: 5,915 mm

• Max. Digging Distance: 9,860 mm

• Min. Swing Radius: 2,970 mm

• Travel Speed (Low/High): 5.1 / 11.4 km/h

Capacities

• Fuel Tank: 330 L

• Hydraulic Tank: 250 L

• Engine Oil: 22 L

Structure

• Track Rollers: 2×9

• Ground Clearance: 0.9–1.3 m

Ideal Applications

The SH240-8 excavator is widely used in:

• General construction & earthmoving

• Road & highway construction

• Municipal engineering & urban renovation

• Building foundation excavation

• Material handling & loading

• Water conservancy & landscaping

Why Choose SH240-8?

• Global branded components: Cummins, Kawasaki, Parker

• Stable performance & long service life

• High efficiency & low fuel consumption

• Easy maintenance & low owning cost

• Strong after‑sales support from Shitian Heavy Industry
