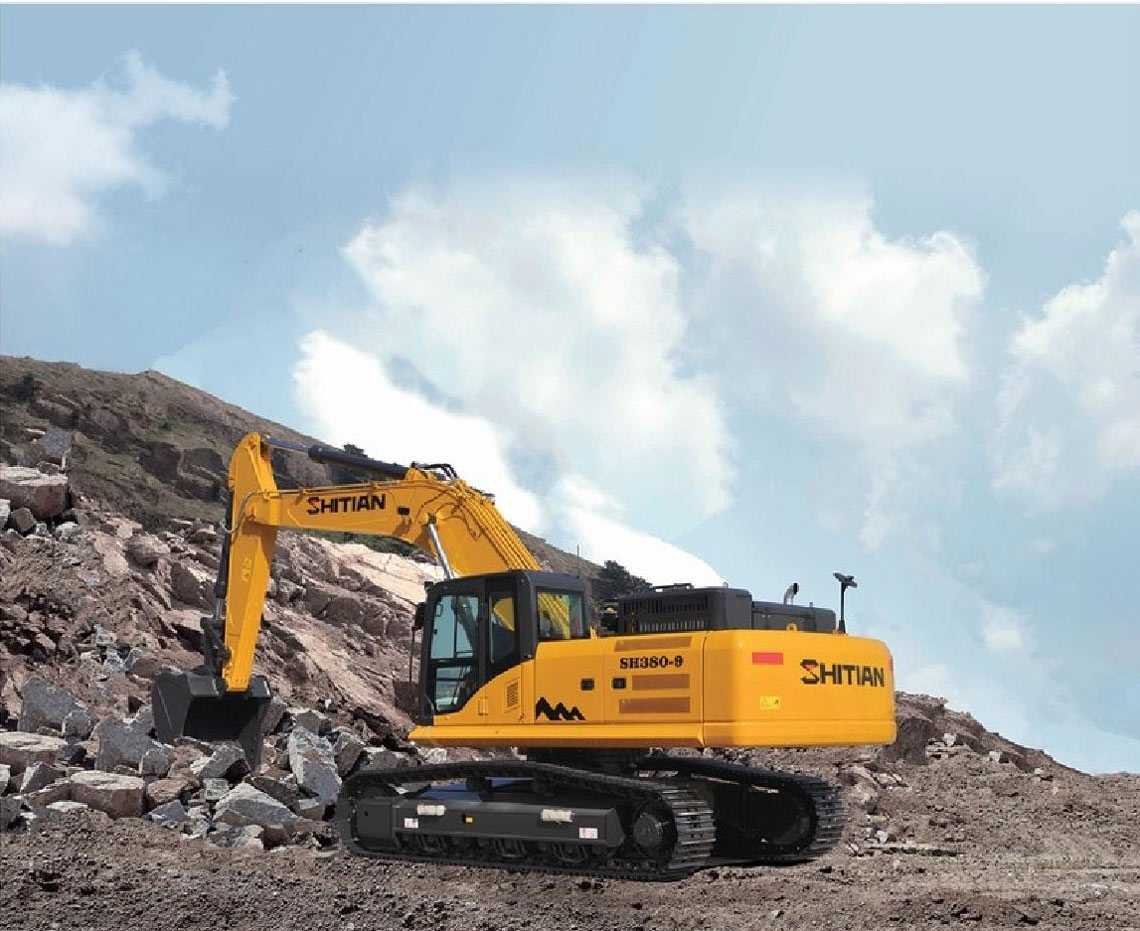

37-Ton Hydraulic Excavator
1.Powerful Cummins Engine Core Delivers Unmatched Heavy-Duty Performance.
2.High-Precision Hydraulic System + Stable Crawler Chassis Ensures Efficient & Safe Operation.
3.Heavy-Duty Reinforced Structure Extends Machine Lifespan for Long-Term Cost Savings.

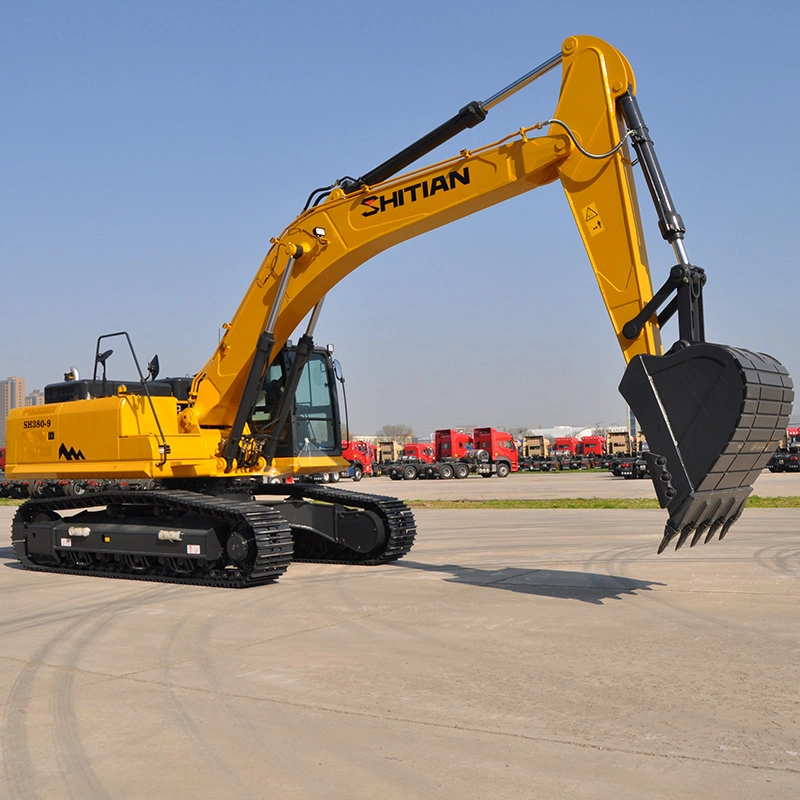

The SH380-9 excavator is equipped with a premium Linde hydraulic system—an upgrade that goes far beyond superficial enhancements to deliver a comprehensive boost to the machine’s core performance.Our hydraulic crawler heavy-duty excavator is a high-performance heavy-duty machinery tailored for harsh construction environments. Equipped with the world-renowned Cummins 6LTAA8.9 engine, it integrates advanced hydraulic control technology and a stable crawler chassis, delivering exceptional power, precision, and durability. Whether it's mining operations, large-scale infrastructure construction, port bulk cargo handling, or municipal engineering projects, this excavator can meet the high-intensity and continuous operation requirements, becoming your reliable partner in heavy-duty construction.
1. Powerful Engine, Unmatched Heavy-Duty Performance
Powered by the Cummins engine, a globally recognized power unit with strong power and sufficient torque. It can operate continuously and stably without stalling even in high-intensity heavy-duty working conditions such as mining crushed stone loading and large-scale infrastructure site leveling. The engine's mature and reliable technology ensures low failure rate, effectively reducing downtime and improving construction efficiency.
2.Precise Hydraulic Control, Safe Operation on Complex Terrain
Adopts a high-precision hydraulic system with sensitive response and controllable digging force. It can accurately complete micro-operations in complex terrain such as municipal pipe trench excavation and mountain subgrade construction. Matched with a stable crawler chassis, it has a large ground contact area, which can firmly grip the ground in slippery sites such as muddy wetlands and gravel slopes, avoiding the risk of equipment rollover and ensuring the safety of operators and construction.
3. Energy-Saving & Efficient, Suitable for Continuous Construction
The Cummins engine itself has the characteristic of low fuel consumption. Combined with the intelligent power matching technology of the hydraulic system, it can reduce energy consumption by 15% compared with similar products. In large-scale construction projects that require 24-hour continuous construction, such as high-speed rail new city construction and highway reconstruction and expansion, it can significantly reduce the number of fuel refuelings. It is especially suitable for operation scenarios where fuel supply is inconvenient in remote areas.
| Details of Model:SH380-9 |
| Total weight:37000KG |
| Bucket capacity：1.62-1.82m3 |
Power output：212KW |
| Engine | ||
| Model | Isuzu6HK1X | |
| Type | Six-cylinderinline,turbocharging, | |
| intercooling | ||
| No.ofcylinder.Boreandstroke(mm) | 6×115×125 | |
| Displacement（L） | 7.79 | |
| Poweroutput（kw/rpm） | 212/2000 | |
| 铲斗Bucket | ||
| Bucketcapacity(m3) | 1.62-1.82 | |
| Bucketwidth(mm)(mm) | 1571 | |
| DiggingForce | ||
| Bucketdiggingforce（KN） | 190 | |
| Armdiggingforce（KN） | 230 | |
| Hydraulicsystem | ||
| Hydraulicpumpform | 2Variableplungerpump+1gear | |
| pump | ||
| Max.dischargeflow(L/min) | 2x330 | |
| Travelcircuit（Mpa） | 36 | |
| Swingcircuit（Mpa） | 25.5 | |
| Walkingsystem | ||
| Travelmotors | Variableaxialpistonmotor | |
| Travelshoes | 2×49 | |
| Travelspeed(km/h) | 5.0/3.0 | |
| Drawbarpullingforce(KN) | 280 | |
| Gradeability | 70%（35°） | |
| Supportrollerquantities | 2×8 | |
| Carrierrollerquantities | 2×2 | |
| OperatingWeightandGroundPressure | ||
| Operatingweight(Kg) | 37000 | |
| Groundpressure(KPa) | 62 | |
| Slewingsystem | ||
| Swingspeed(r/min) | 9.7 | |
| Brake | Pressure | ReleaseMechanical |
| Braking | ||
| OilCapacity | ||
| Fueltank（L） | 580 | |
| Coolingsystem（L） | 32.5 | |
| Engineoil(L) | 33 | |
| Hydraulicoiltank/Systemcapacity(L) | 380/450 | |
| Overalllength（mm） | 11161 |
| GroundContactLength(Transportation)（mm） | 5872 |
| Overallheight(totopofboom)（mm） | 3347 |
| Overallwidth（mm） | 3200 |
| Overallheight(totopofcab)（mm） | 3293 |
| CounterWeightGroundClearance（mm） | 1312 |
| Groundclearance（mm） | 565 |
| Tailswingradius（mm） | 3438 |
| Tread（mm） | 4080 |
| TrackLength（mm） | 5044 |
| TrackGauge（mm） | 2600 |
| Trackwidth（mm） | 3200 |
| Shoewidth（mm） | 600 |
| BonnetHeight（mm） | 2421 |
| RevolvingFrameWidth（mm） | 3195.3 |
| distancefromswivelcentertotail（mm） | 3438 |
