Product description:

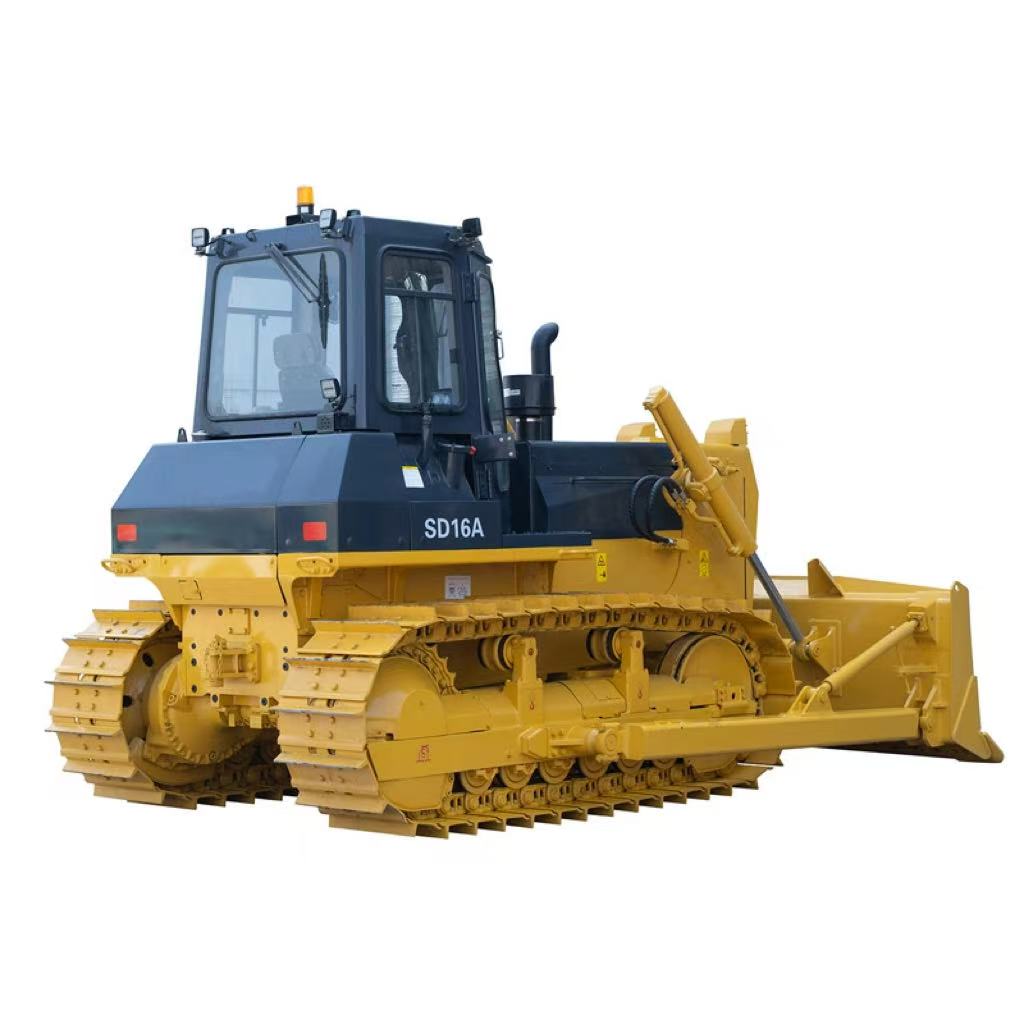

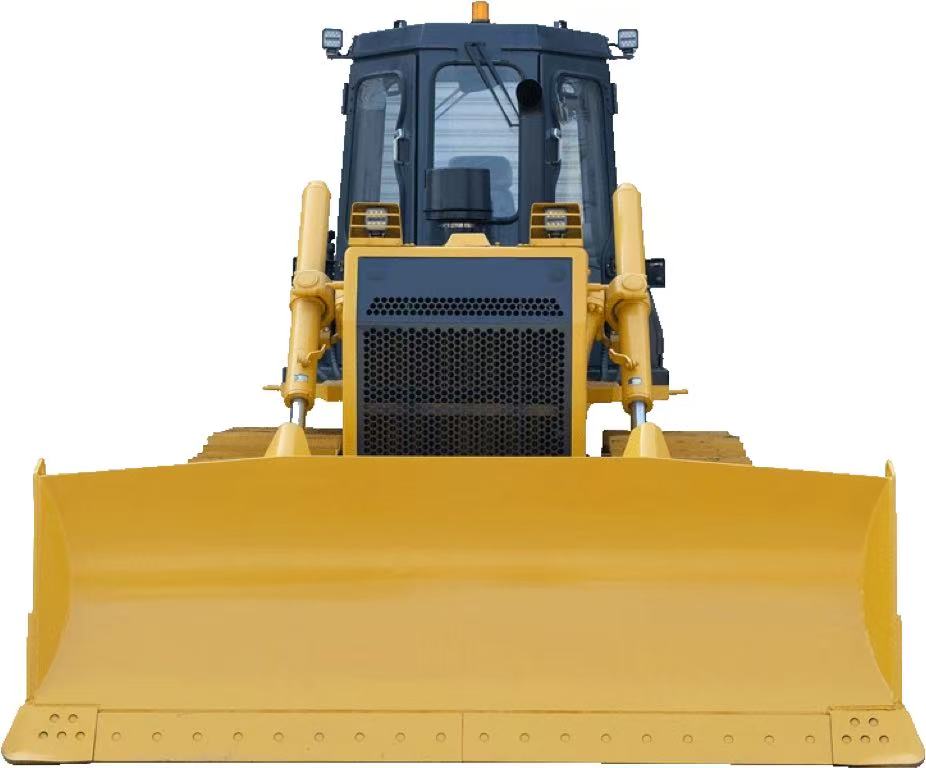

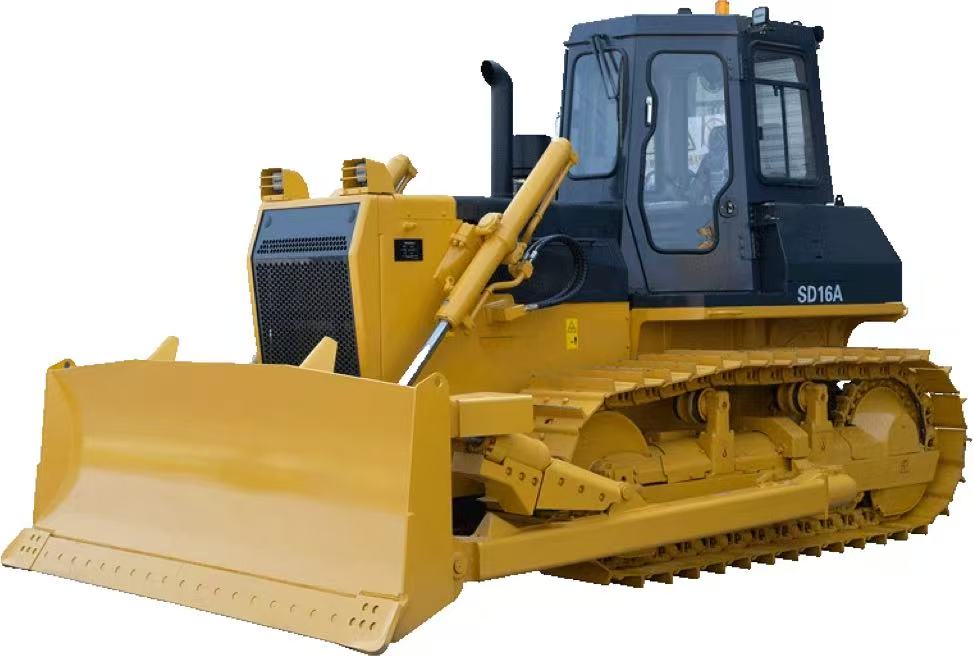

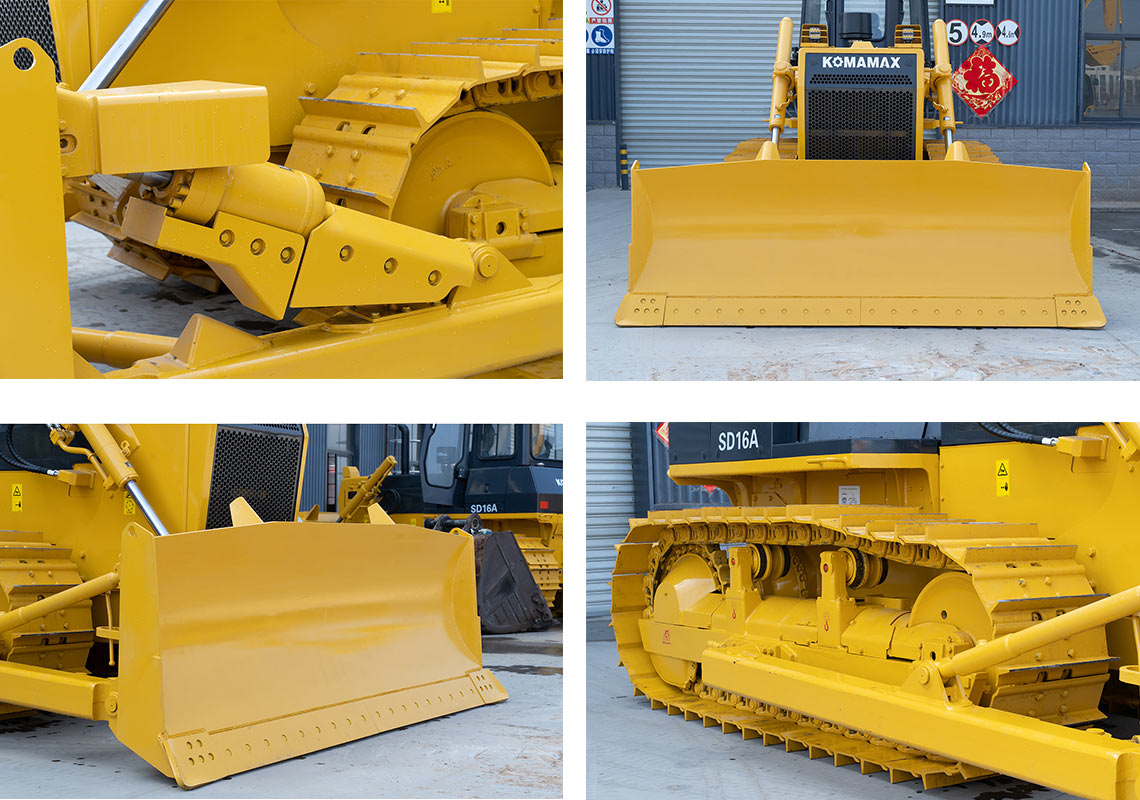

Equipped with dual-brand engines (Weichai & Cummins), this bulldozer balances strong power and excellent fuel economy, greatly cutting daily operation costs. Its crawler chassis, with low ground pressure and strong grip, adapts easily to muddy, rugged and other complex terrains. Fitted with a planetary gearbox, it achieves precise, smooth control and stable operation via hydraulic engagement and forced lubrication. The well-matched transmission system, combining an efficient hydraulic torque converter and Komatsu-tech final drive, boasts high load-bearing capacity, efficiency, reliability and durability for heavy-duty, high-frequency tasks.The bulldozers are manufactured in strict accordance with international safety and environmental standards, greatly reducing pollution to the environment.

Product details:

Engine

Shoda bulldozers are equipped with Weichai or Cummins engines, which are reliable and powerful, with high combustion efficiency and easy maintenance. Big brand engine, after-sales service is available in every country in the world.

Gearbox

The gearbox adopts planetary gear structure and realizes forward, reverse and various speed changes by manipulating the hydraulic control min. The structure is in the form of planetary gears, multi-plate clutch, hydraulically combined with forced lubrication type.

Torque converter

The torque converter is a single-stage, single-phase, three-element centripetal turbine torque converter with advanced mechanism, reliable operation and reasonable matching with the main engine, which is capable of efficiently transmitting the power output from the engine to the final drive.

Final drive

As the last part of the transmission system, the final drive is one of the most important parts of the bulldozer. We adopt Japanese Komatsu technology for heat treatment of the two-stage straight tooth structure, fully lubricated final drive system, with strong load-bearing capacity, smooth transmission, long service life and other characteristics.

Certificates:
