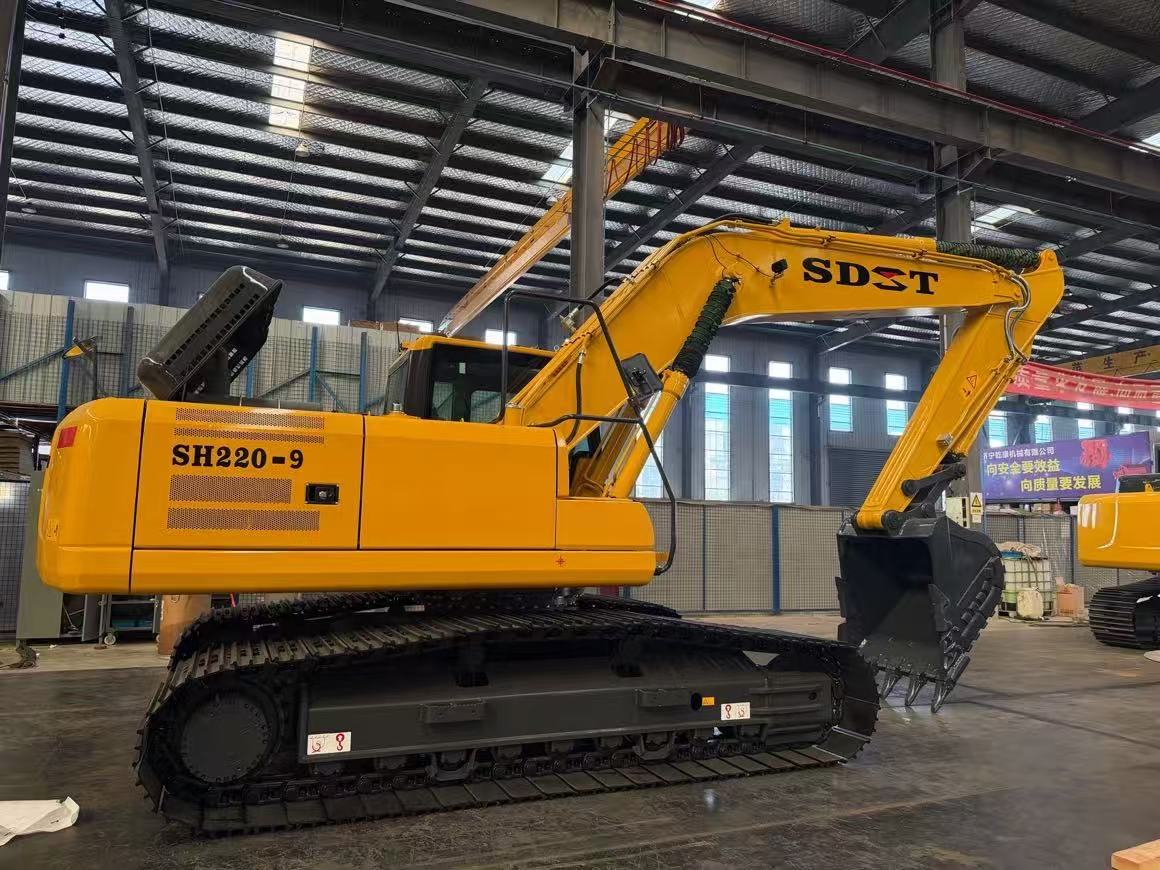

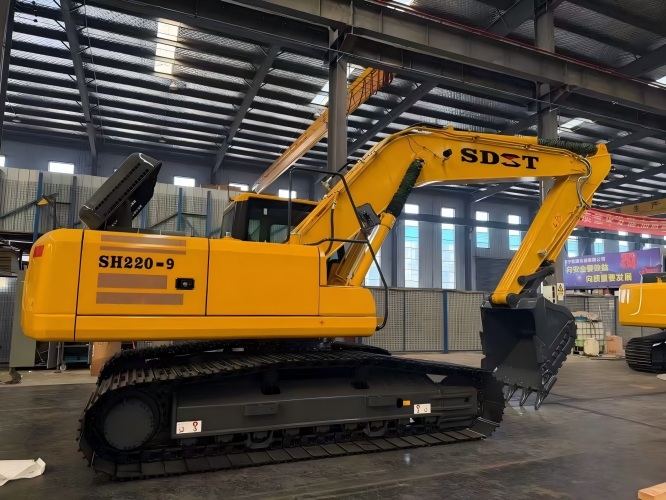

SH220LC-9 22 Ton Hydraulic Excavator is a high-performance heavy-duty excavator designed for earthmoving, construction, mining and dredging. It delivers reliable power, stable performance and easy maintenance for global construction customers. Equipped with Cummins QSB7-C166 engine and Kawasaki hydraulic system, with operating weight 21800 kg and rated power 124 kW, it ensures high efficiency and durability in harsh job sites. It is widely used for excavation, foundation pit, mining stripping and river dredging, helping you improve productivity and reduce operating costs. Contact us now for quotation and customized solutions.

Product Advantages

Cummins QSB7-C166 engine

Rated power 124kW/2050rpm, max torque 708Nm/1500rpm, strong low-speed torque and excellent fuel economy.

Kawasaki hydraulic system

Dual variable piston pump flow 2×224L/min, working pressure 34.3MPa, smooth movement and fast response.

Reinforced heavy-duty structure

Ground pressure 49.8kPa, track shoe width 600mm, stable and durable for long-term heavy-duty work.

Strong digging performance

Bucket capacity 1.05m³, digging force 146kN, traction force 214kN, wide working range.

Easy maintenance & high availability

Reasonable layout for daily service, quick inspection and maintenance, reduce downtime.

Application Solutions

Municipal earthmoving

Pain: Tight construction period, high fuel consumption, low efficiency.

Function: 124kW power + 34.3MPa hydraulic system.

Result: Higher efficiency, lower fuel cost, faster earth transportation.

Deep foundation pit

Pain: Easy to sink, high stability requirement.

Function: 600mm wide track + 49.8kPa ground pressure.

Result: No sinking, stable and safe construction.

Applicable Industries

Municipal engineering: Road widening, pipeline excavation, site leveling

Building construction: Foundation pit excavation, basement earthwork, site leveling

Rural construction: Land consolidation, fish pond, rural road building

Project Cases

Applied to high-rise building foundation pit construction, stable and safe, shortens earthwork period obviously.Used for topsoil stripping and ore digging, over 300 working hours per month, stable performance, low failure rate.

Warranty & Delivery

Warranty: 12 months or 1000 hours (whichever comes first). Free repair or replacement for quality problems caused by production technology; wearing parts excluded.

Delivery: Standard production cycle 20–30 working days after order confirmation. Contact us for bulk orders.

Transport: Special sea container for heavy machinery, support sea/air/express, provide logistics tracking.
